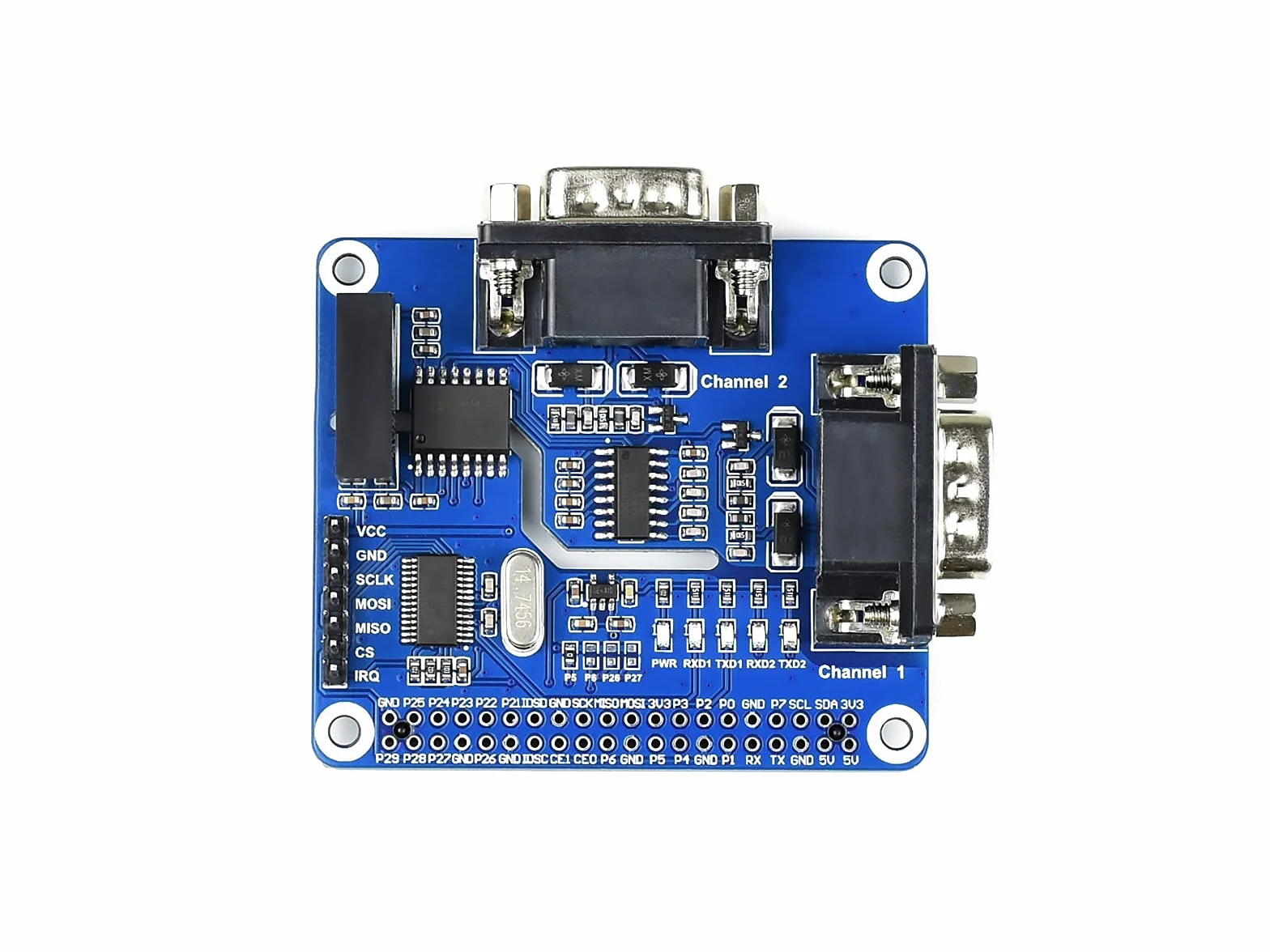

Waveshare 2-Channel Isolated RS232 Expansion HAT for Raspberry Pi SC16IS752 SP3232

Marka: Waveshare
Nazwa modelu: 2-CH RS232 HAT
Technologia łączności: GPIO
Dołączone komponenty: 2-kanałowy izolowany kapelusz rozszerzający RS232 do Raspberry Pi, 2 x 20-pinowy żeński nagłówek
System operacyjny: Linux
Producent procesora: VIA
Standard komunikacji bezprzewodowej: 802.11b
Zgodne urządzenia: Raspberry Pi, Raspberry Pi Zero, Raspberry Pi 3, Raspberry Pi 4
Technologia pamięci RAM: LPDDR2, LPDDR3
UPC: 732376134408 614961956513 732376134392

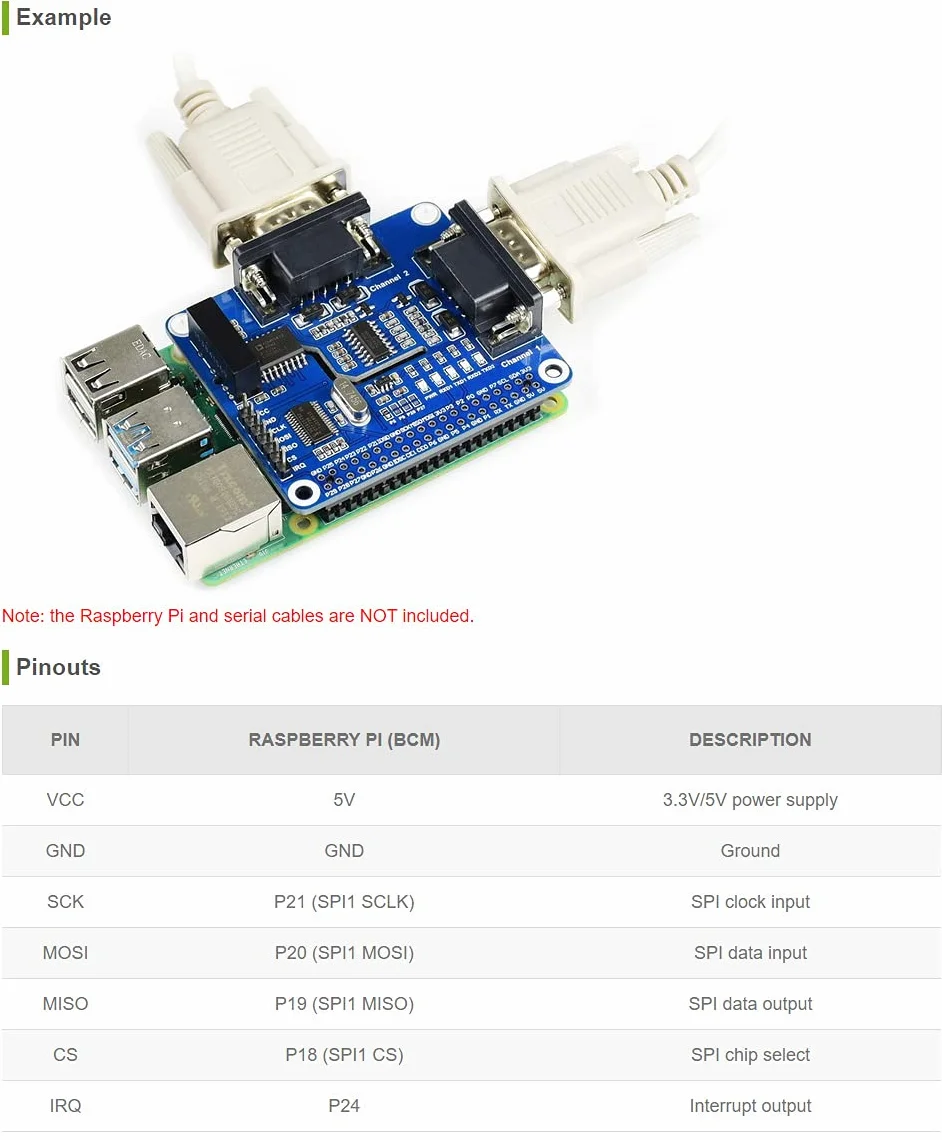

- Note: this HAT doesn't come with any serial cable, you may also want to pick up the following cables for easy use: Serial Cable Dual Female Crossover: for connecting RS232 devices with male connector, OR for self transceiving test of the HAT's 2 channels RS232. Serial Cable Male to Female Straight Through: for connecting RS232 devices with female connector.

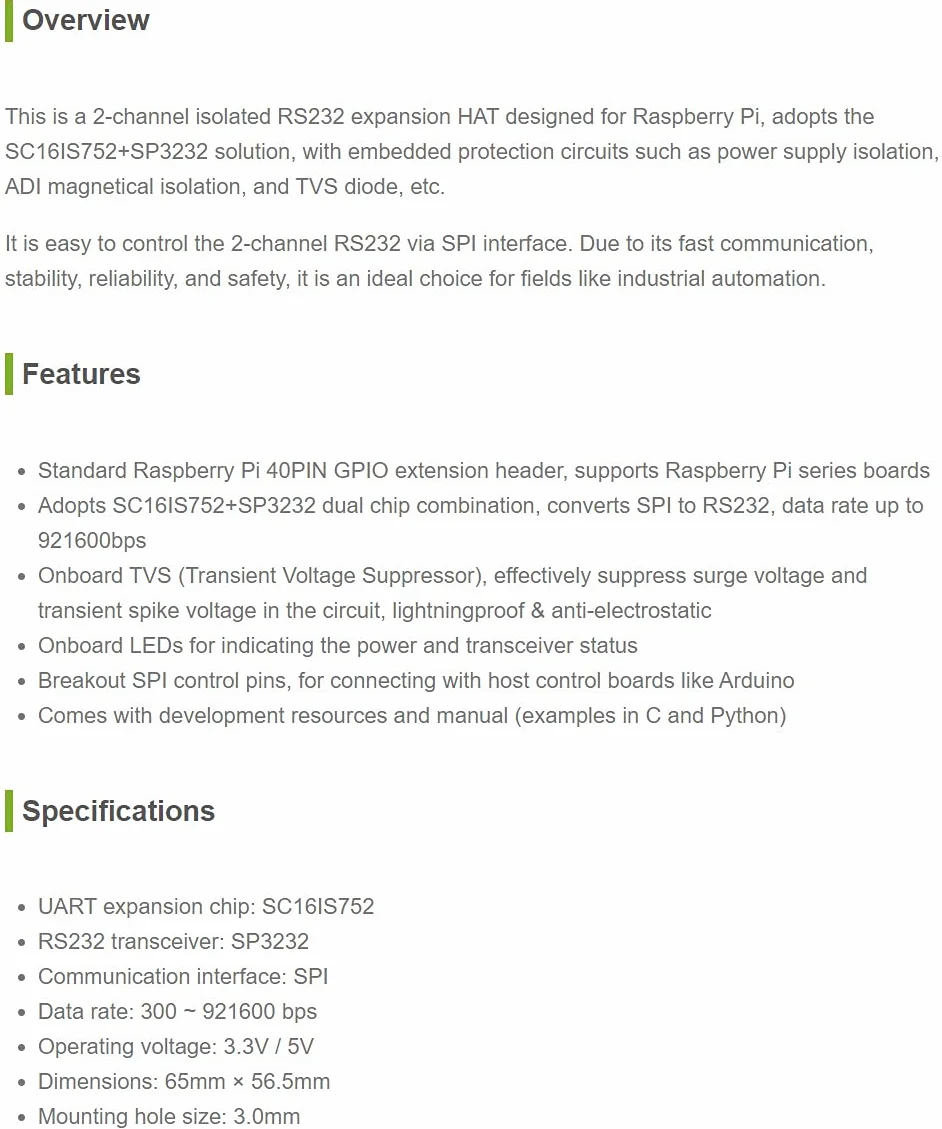

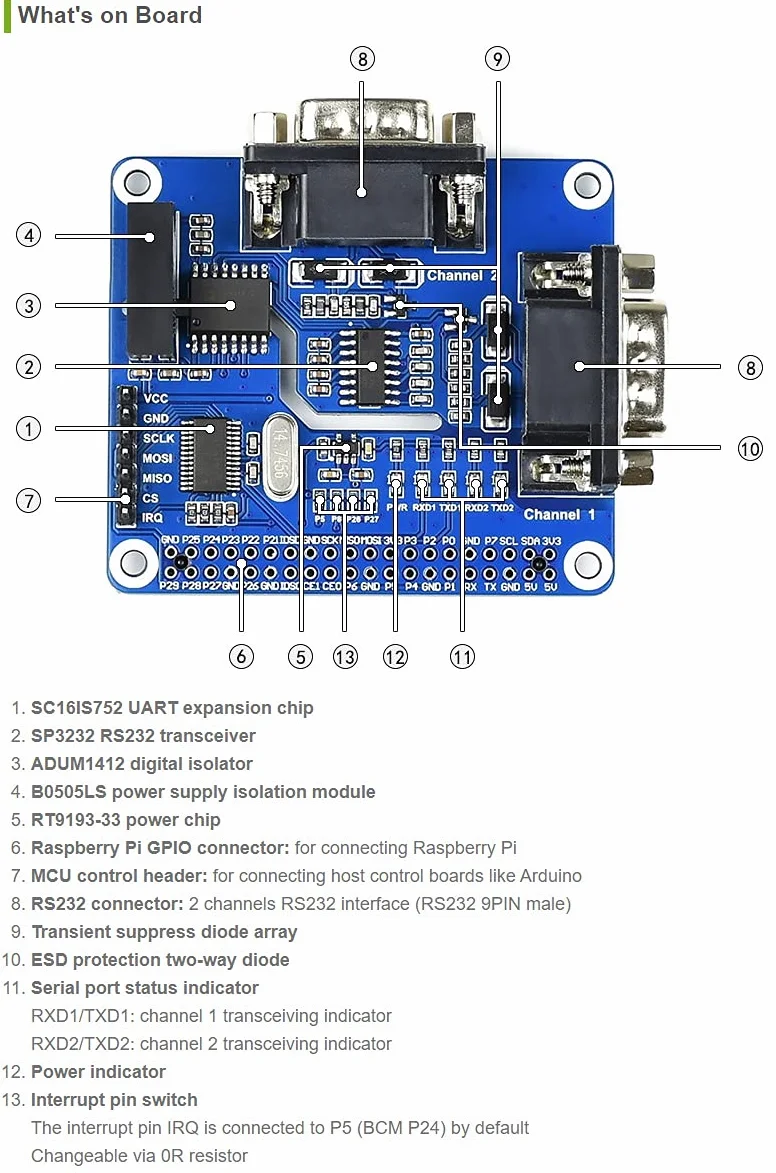

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. Adopts SC16IS752+SP3232 dual chip combination, converts SPI to RS232, data rate up to 921600bps.
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic.
- Onboard LEDs for indicating the power and transceiver status. Breakout SPI control pins, for connecting with host control boards
- Comes with development resources and manual (examples in C and Python).
