Waveshare Industrial RS485 Hub 8-ch Rail-mount Wide Baud Rate RS485 Network Relay Expansion Isolation

Marka: Waveshare
Zgodne urządzenia: Komputery, Laptopy, Serwer
Szybkość przesyłania danych: 460800 Bity na sekundę
Producent: Waveshare

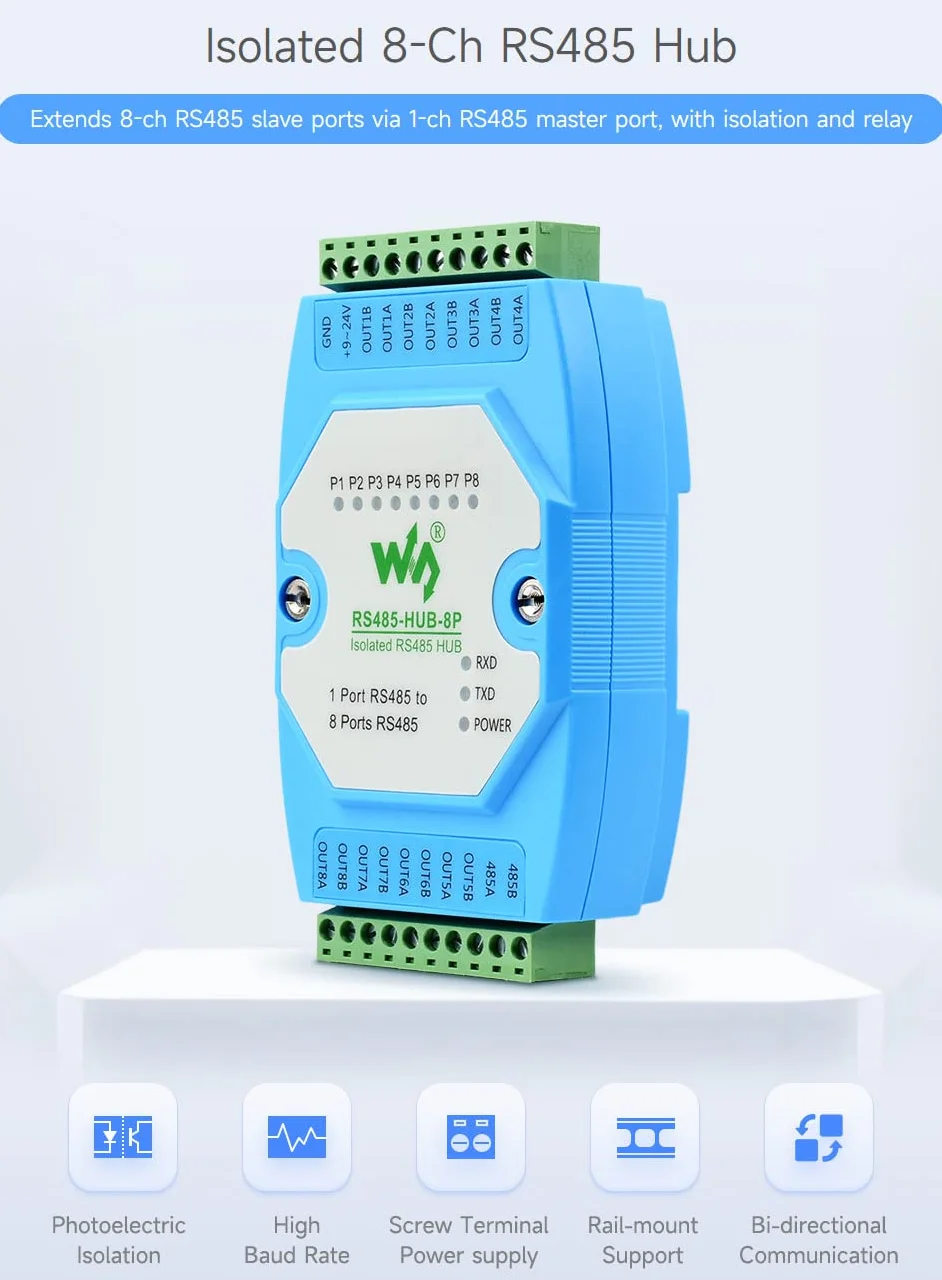

- Extends 8-ch RS485 slave ports via 1-ch RS485 master port, with isolation and relay. Supports RS485 network relay, extension and isolation functions

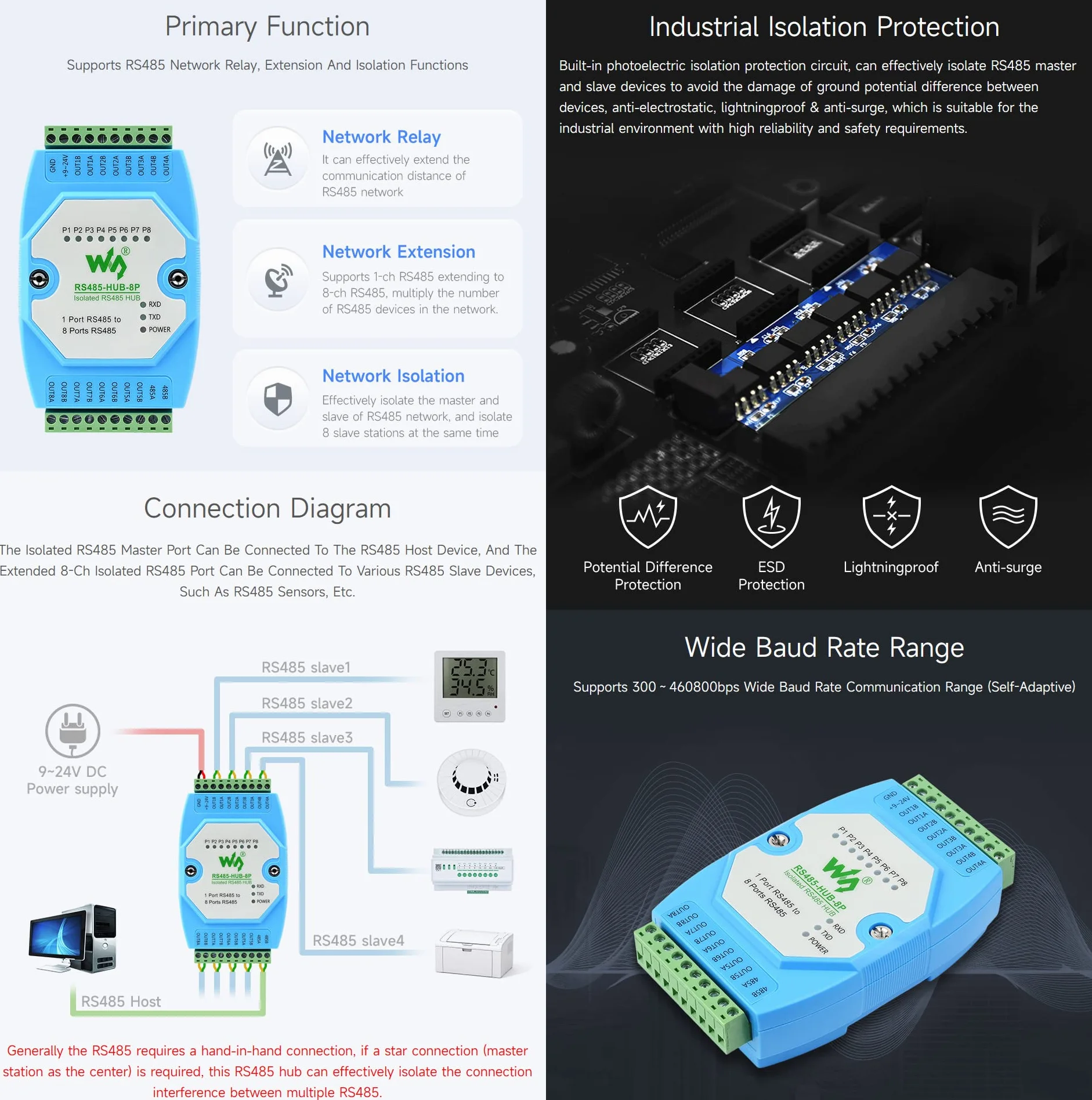

- The isolated rs485 master port can be connected to the rs485 host device, and the extended 8-ch isolated rs485 port can be connected to various rs485 slave devices, such as rs485 sensors, etc(Generally the RS485 requires a hand-in-hand connection, if a star connection (master station as the center) is required, this RS485 hub can effectively isolate the connection interference between multiple RS485)
- Built-in photoelectric isolation protection circuit, can effectively isolate RS485 master and slave devices to avoid the damage of ground potential difference between devices, anti-electrostatic, lightningproof & anti-surge, which is suitable for the industrial environment with high reliability and safety requirements
- Wide baud rate range. Supports 300～460800bps wide baud rate communication range (self-adaptive)

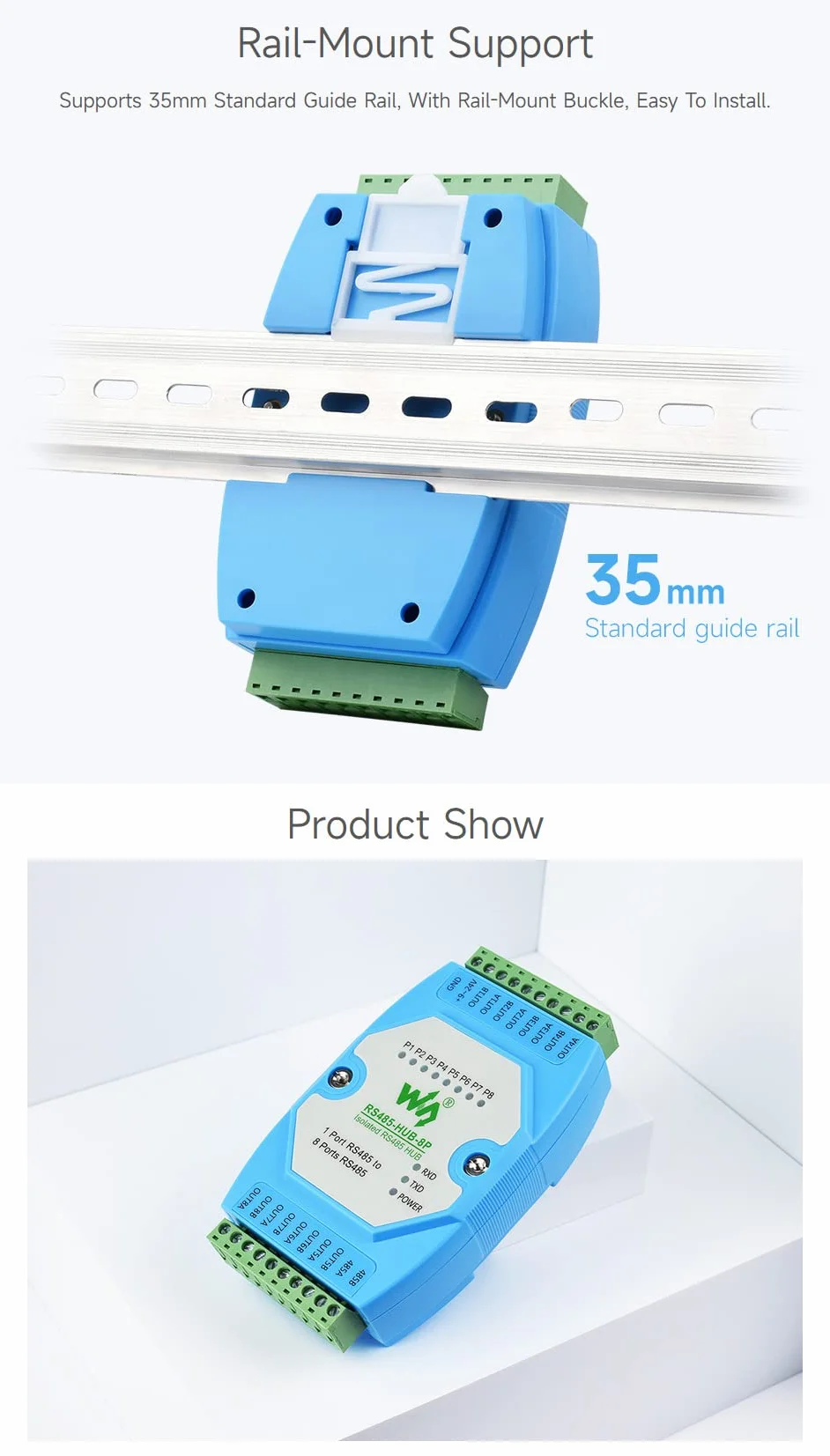

- Support rail-mount. Supports 35mm standard guide rail, with rail-mount buckle, easy to install
