Waveshare Jetson Orin NX AI Development Kit B 16GB Memory Module 13.3inch HDMI LCD Camera

Marka: Waveshare
Rozmiar zainstalowanej pamięci RAM: 16 GB
Pojemność pamięci masowej: 16 GB
Technologia łączności: Bluetooth, Ethernet, HDMI, USB, Wi-fi
Dołączone komponenty: Jetson Orin NX płyta główna 16 GB, płyta podłogowa JETSON-IO-BASE-B, aparat 8 megapikseli, ekran dotykowy 13,3 cala, półprzewodnikowy dysk twardy 128 GB, dwupasmowy moduł karty sieci bezprzewodowej, kabel USB, kabel sieciowy, zasilaczPokaż więcej
Standard komunikacji bezprzewodowej: Bluetooth
Zgodne urządzenia: Aparat fotograficzny, HDMI LCD, Kamera

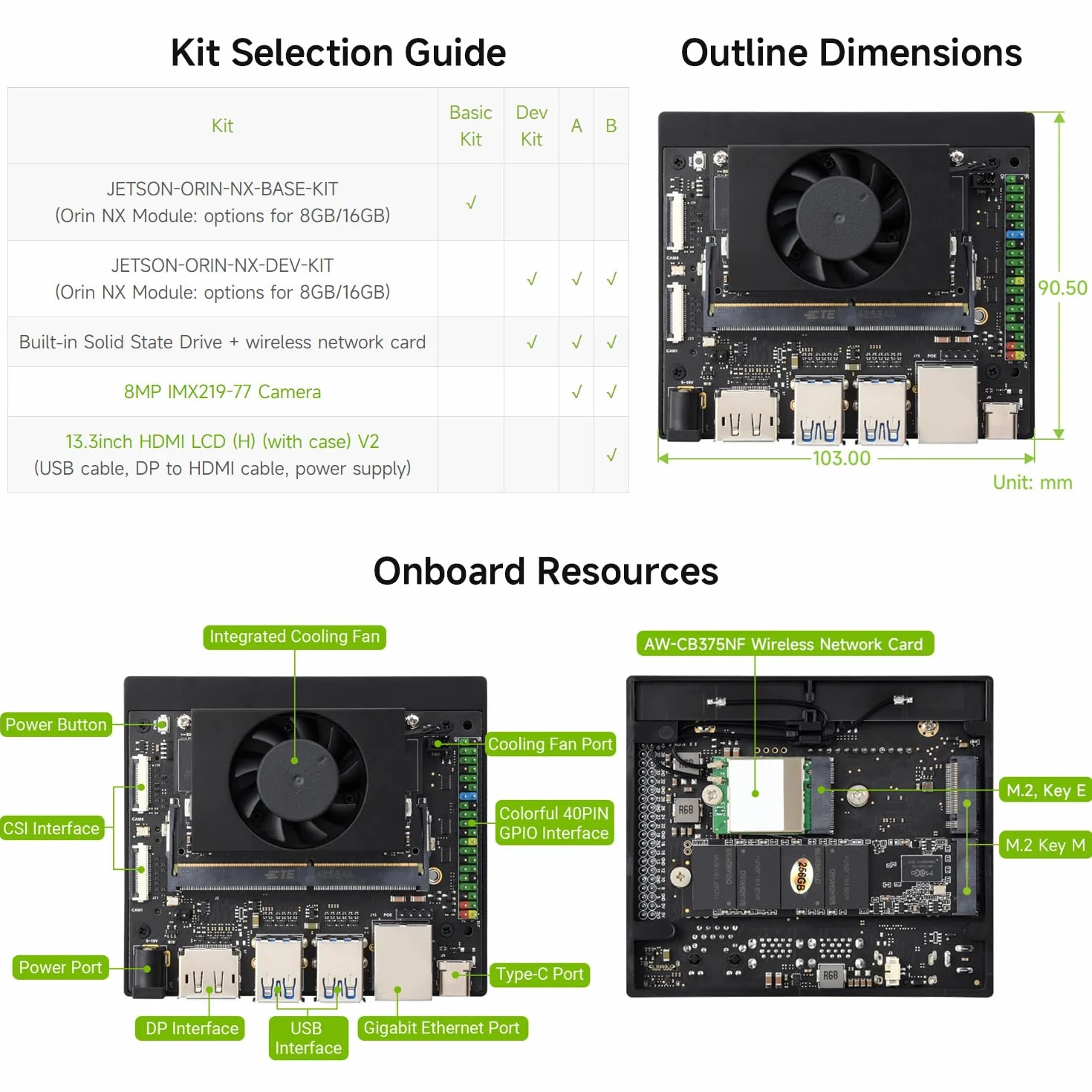

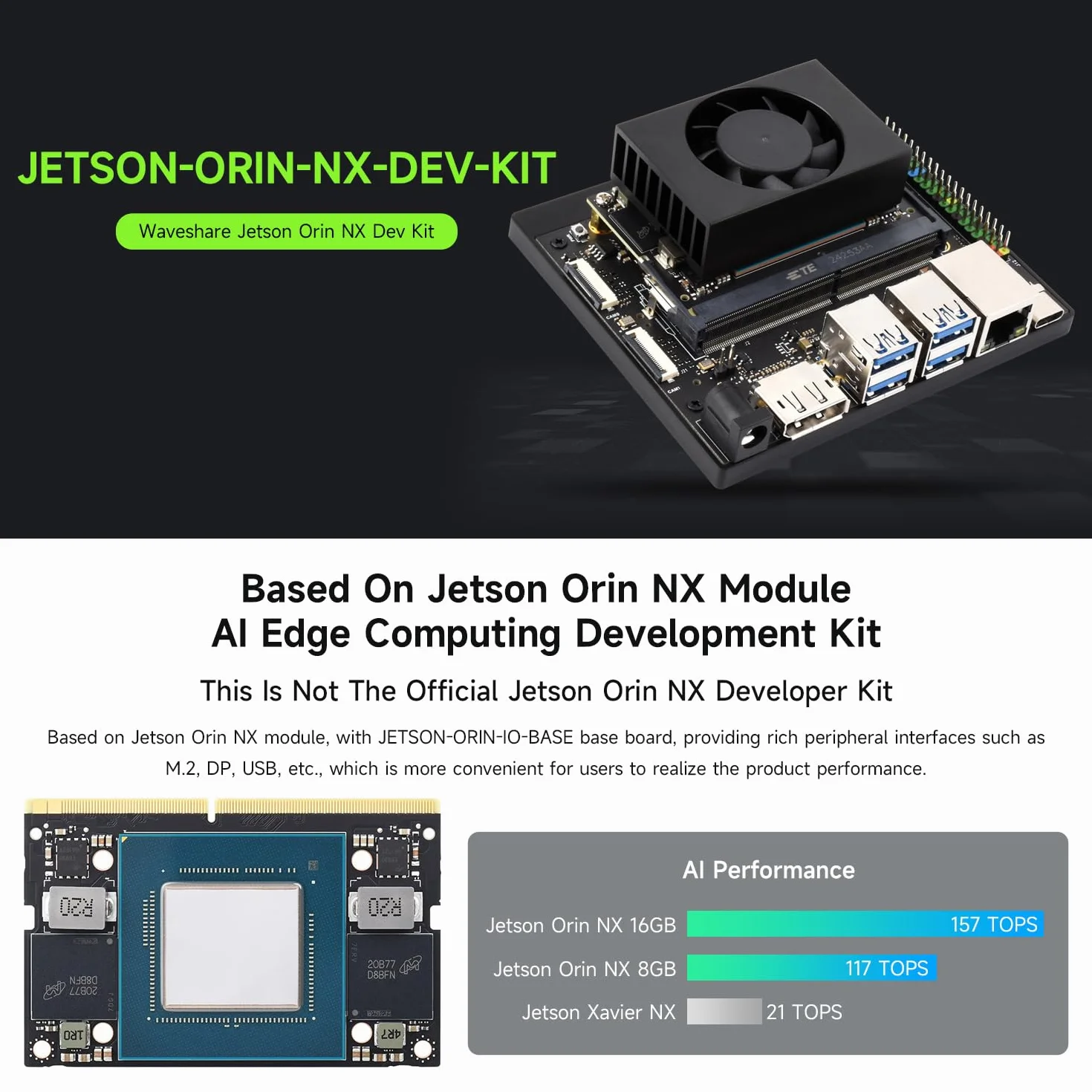

- AI Edge Computing Development Package B, based on Jetson Orin NX Module. With JETSON-IO-BASE-B base board, more rich interfaces such as M.2, HDMI and USB are provided to facilitate users to better play the product performance

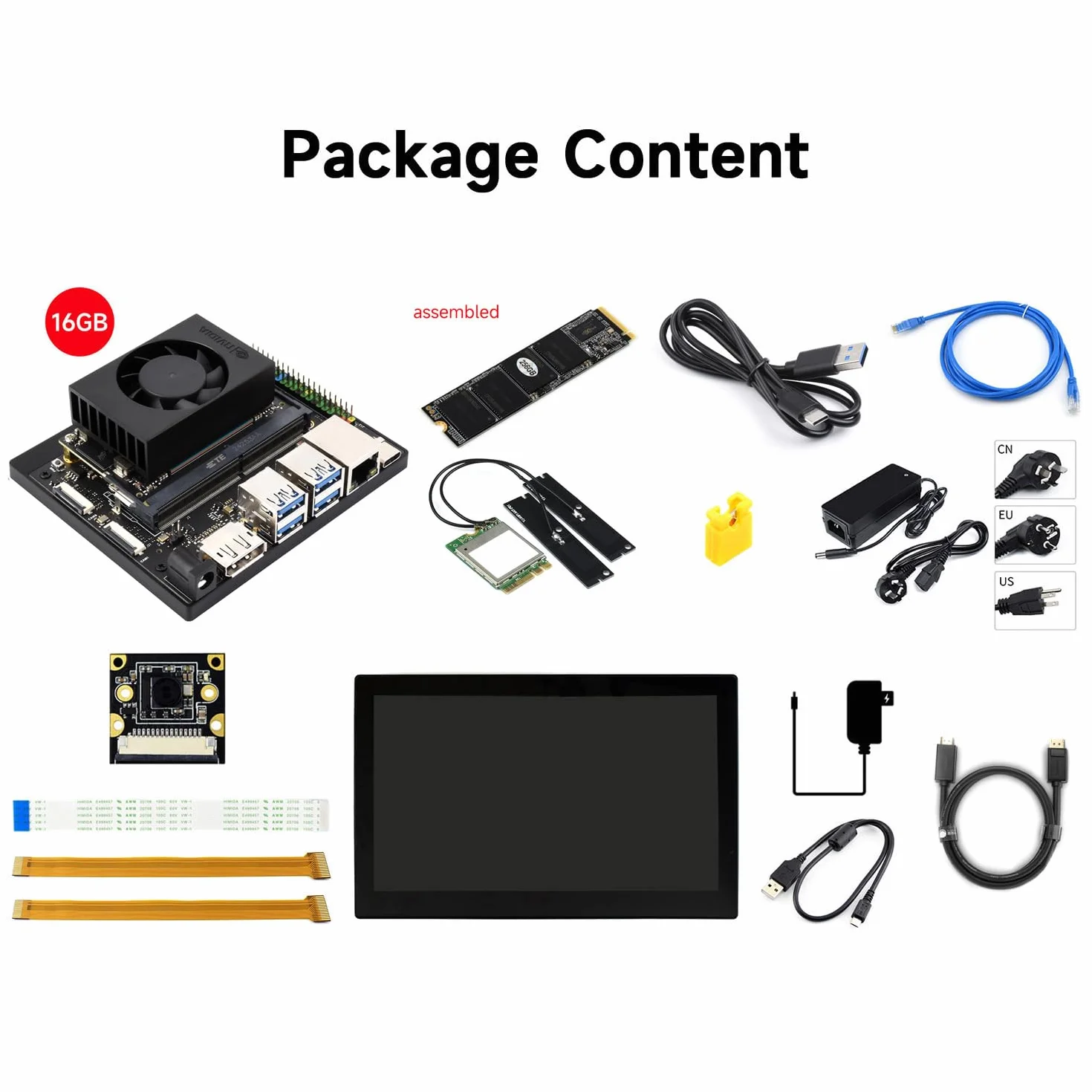

- Package B consists of Jetson Orin NX 16GB core board, JETSON-IO-BASE-B baseboard, integrated heat sink, 128GB solid state hard disk, dual-band wireless network card module, USB cable, network cable and power supply, 8 megapixel (3280 × 2464) High definition camera, 13.3inch 1920 x 1080 resolution capacitive touch screen with case (support 10-point touch), which can be used to display the captured image in real time and realize more human-computer interactive AI operation

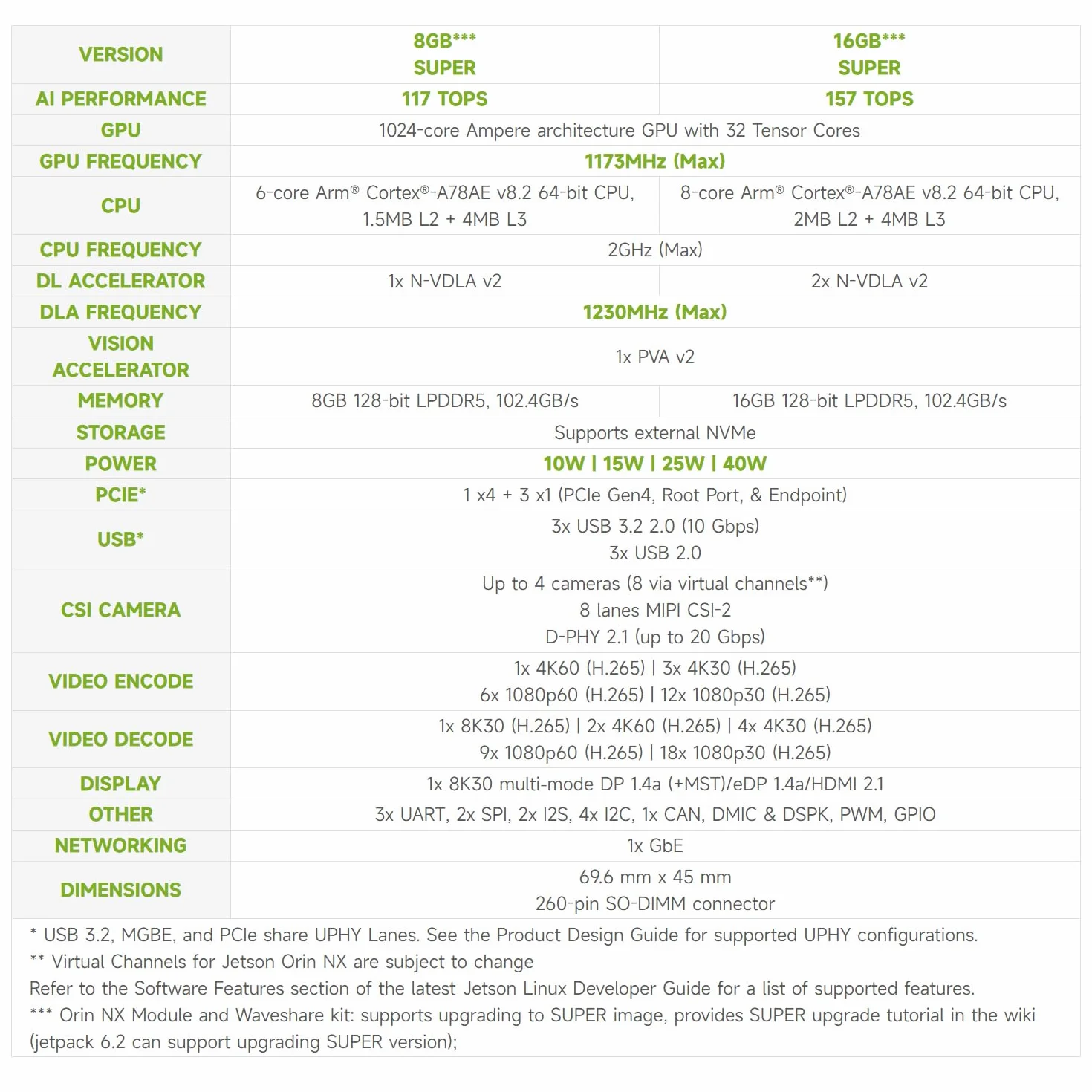

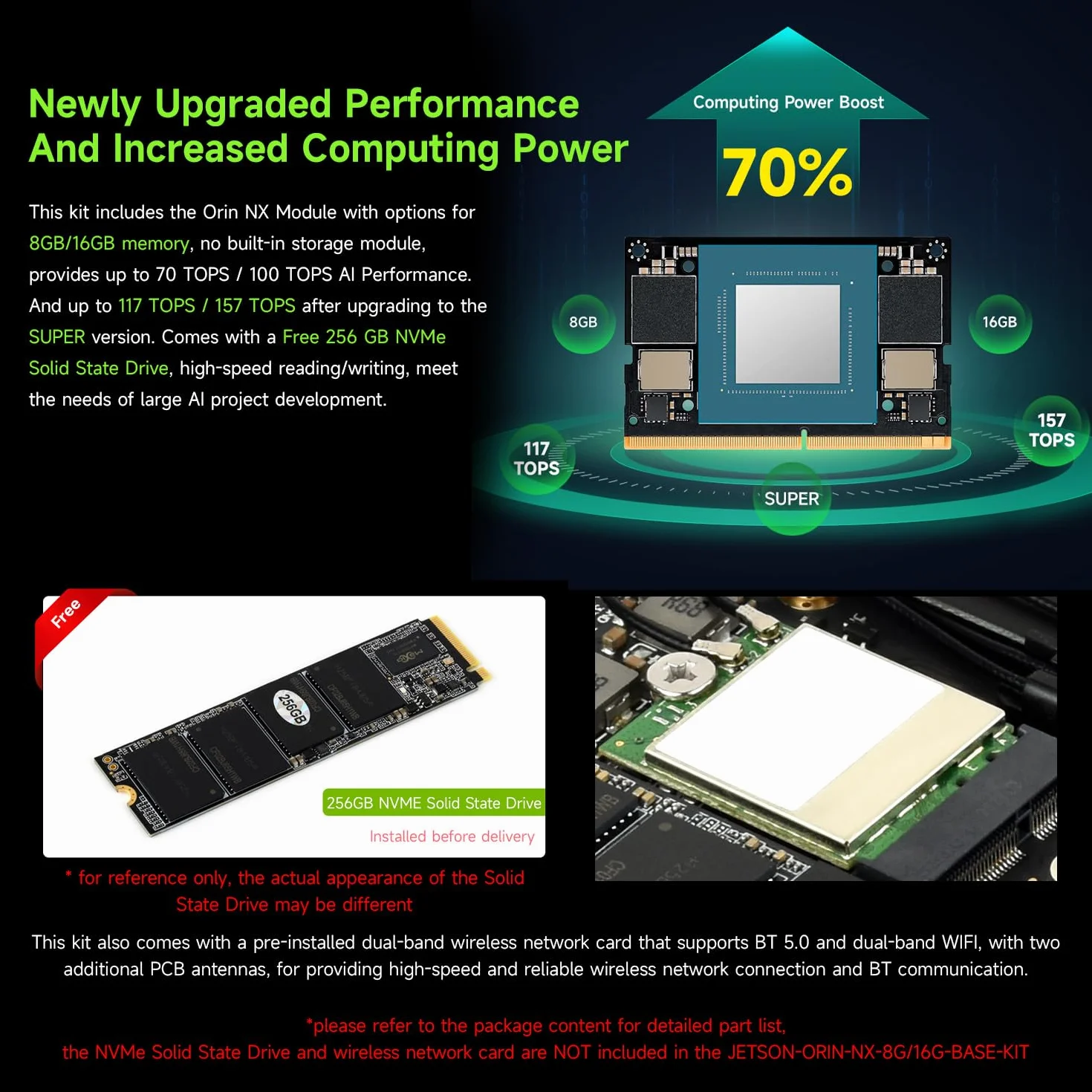

- The Orin NX core board in this kit is a 16GB memory version without built-in memory module, which can provide AI performance of up to 100 TOPS(Jetson Xavier NX is 21 TOPS). With 128 GB solid state hard disk, it supports high-speed read and write, and can meet the needs of large AI development projects
- This kit is also pre-installed with dual-band wireless network card module, supporting Bluetooth 5.0, dual-band WIFI, and equipped with PCB antenna, providing high-speed and reliable wireless network connection and Bluetooth communication function for the kit
- Note: Jetson Orin NX module only supports HDMI interface signal output on the base board, DP interface is not supported
