Waveshare PCIe to 5G HAT for Raspberry Pi 5, RM520N-GL 5G Module, SIMCom/Quectel Compatible

Marka: Waveshare
Nazwa modelu: Raspberry Pi 5 HAT
Model CPU: A6-5200
Technologia łączności: PCIe, USB, Wi-Fi
Dołączone komponenty: PCIe TO 5G HAT+, RM520N-GL 5G, 5G-4IN1-Antena PCB
System operacyjny: Linux
Producent procesora: Broadcom
Standard komunikacji bezprzewodowej: 802.11bgn
Zgodne urządzenia: Raspberry Pi 5, laptopy, routery
Technologia pamięci RAM: LPDDR4

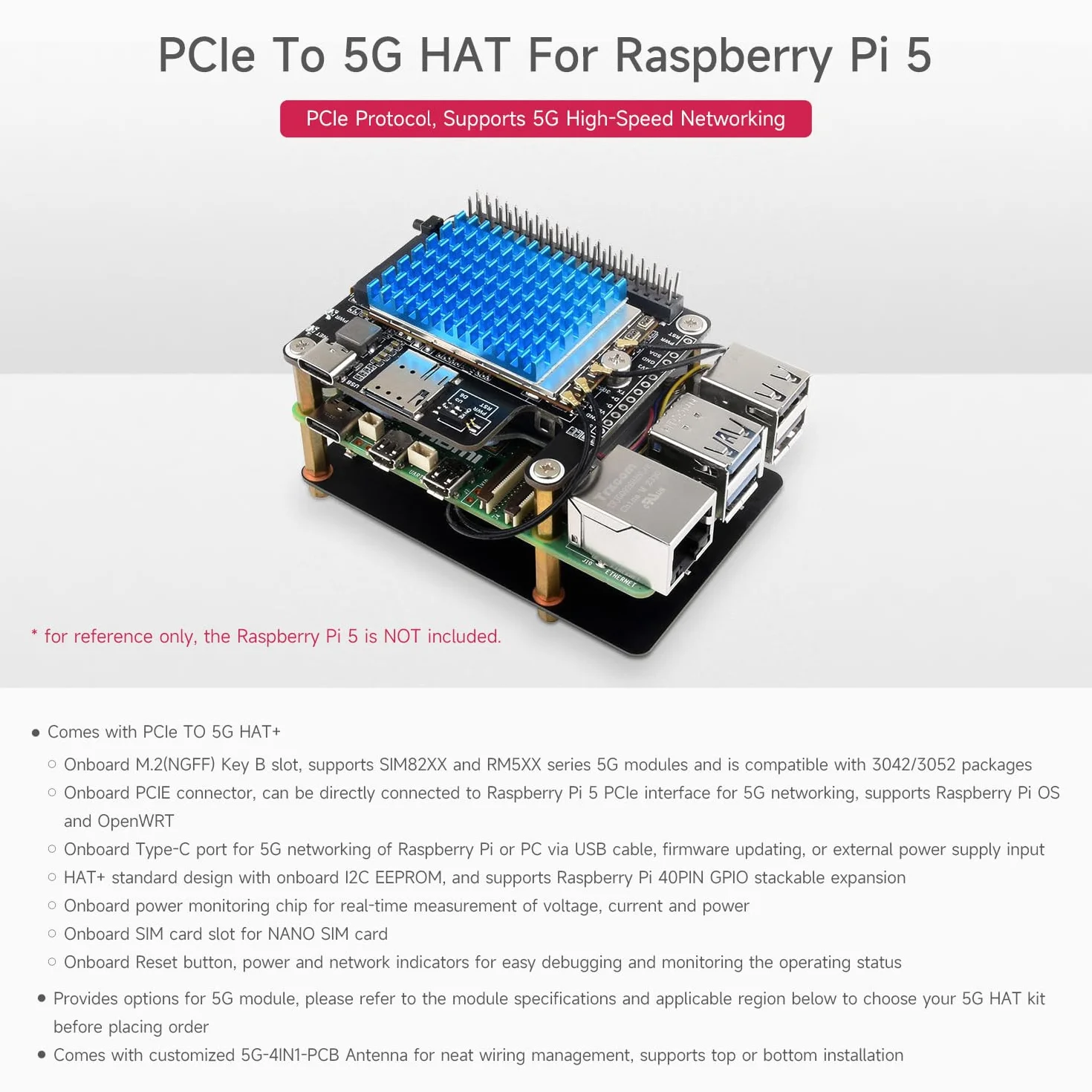

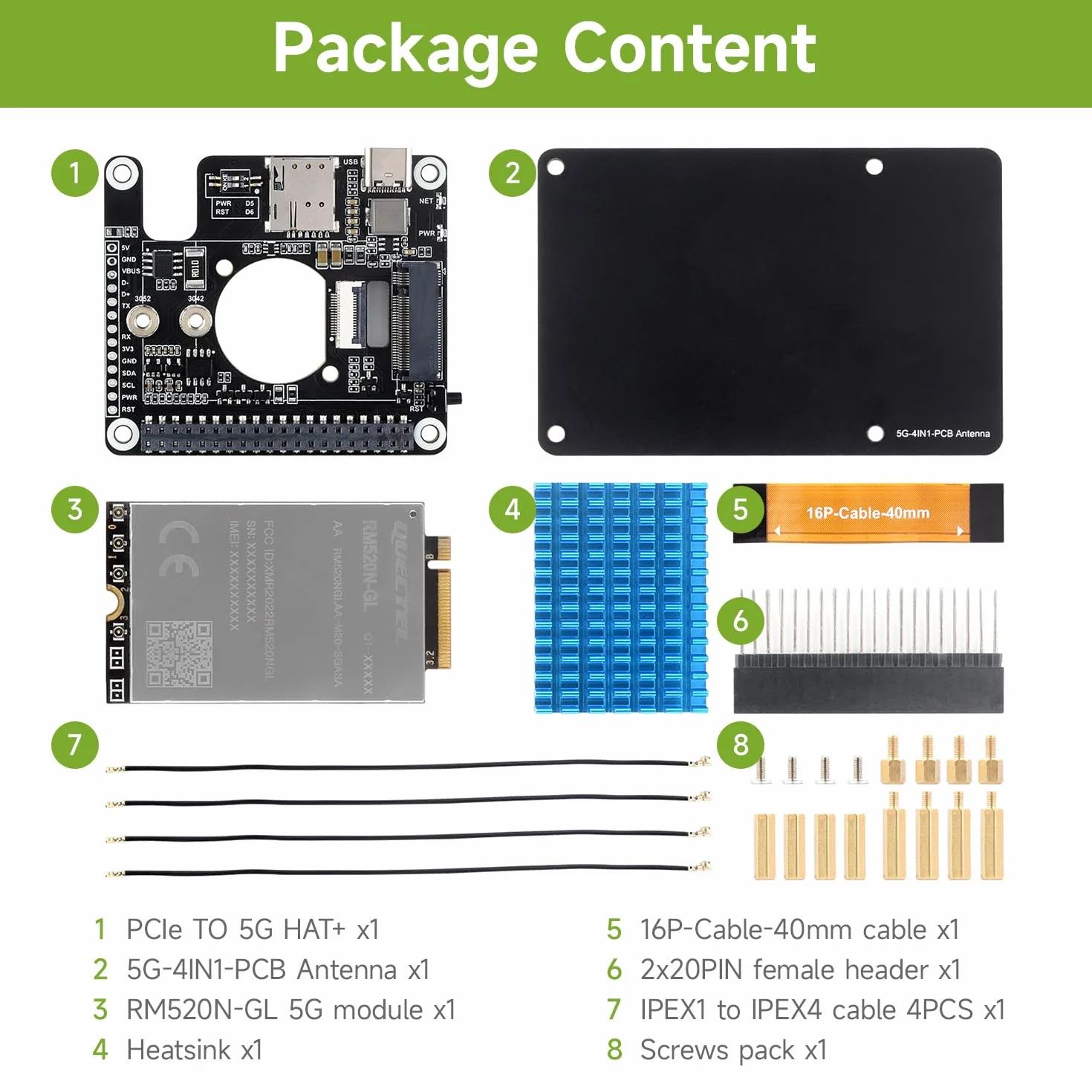

- Comes with PCIe TO 5G HAT+, RM520N-GL 5G Module, 5G-4IN1-PCB Antenna

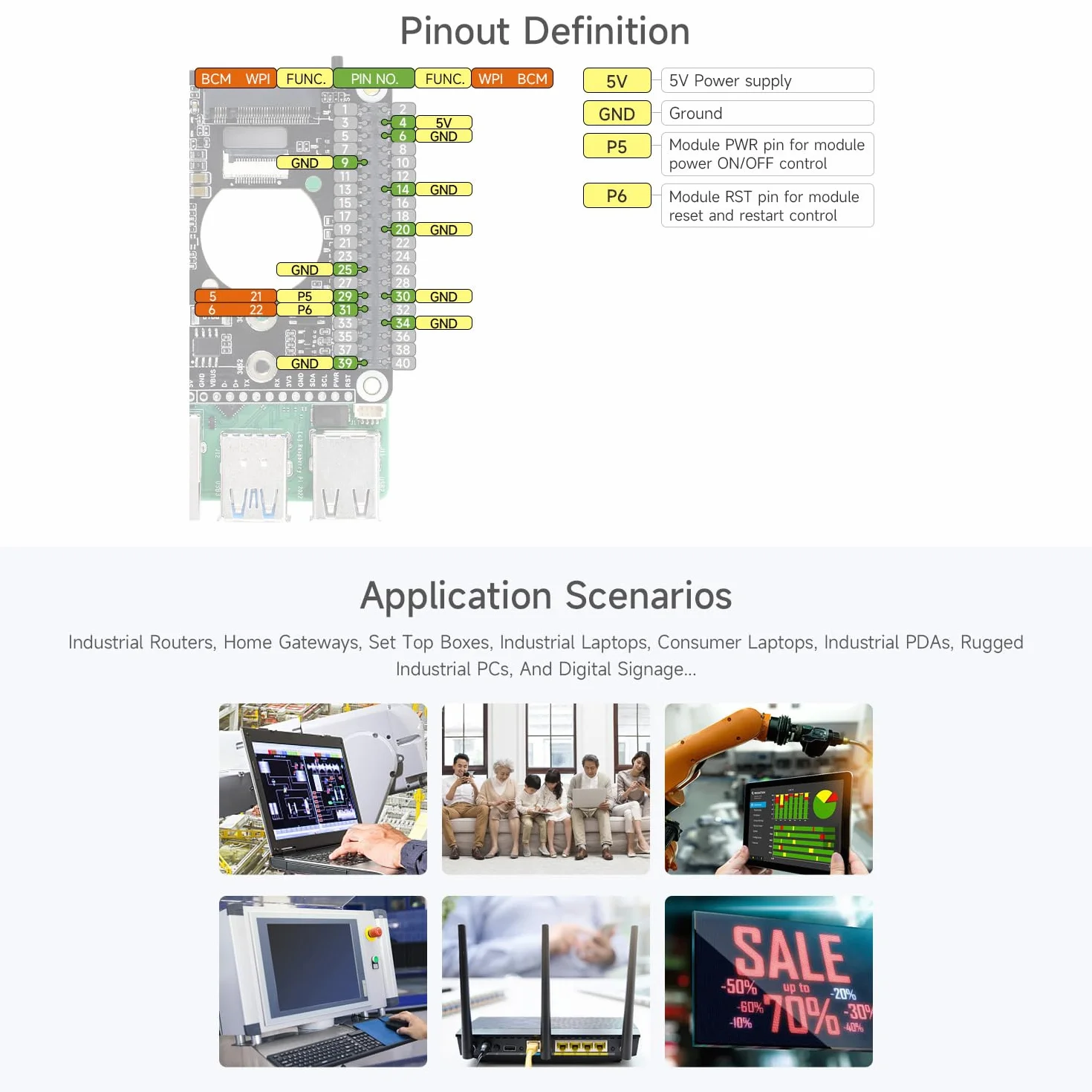

- Suitable for Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer Laptops, Industrial PDAs, Rugged Industrial PCs, And Digital Signage...

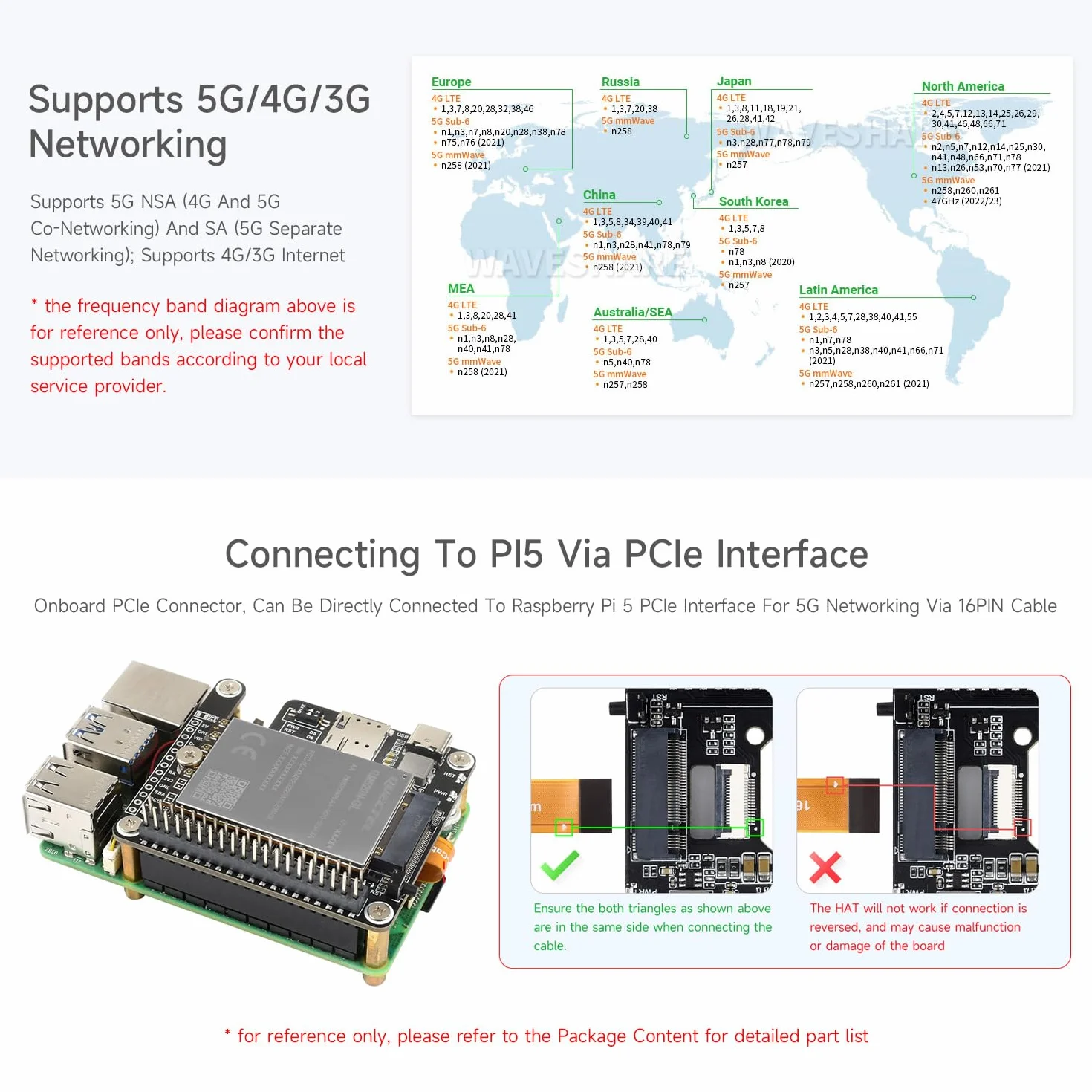

- Supports 5G/4G/3G Networking: Supports 5G NSA (4G And 5G Co-Networking) And SA (5G Separate Networking); Supports 4G/3G Internet. Connecting To PI5 Via PCIe Interface: Onboard PCIe Connector, Can Be Directly Connected To Raspberry Pi 5 PCIe Interface For 5G Networking Via 16PIN Cable

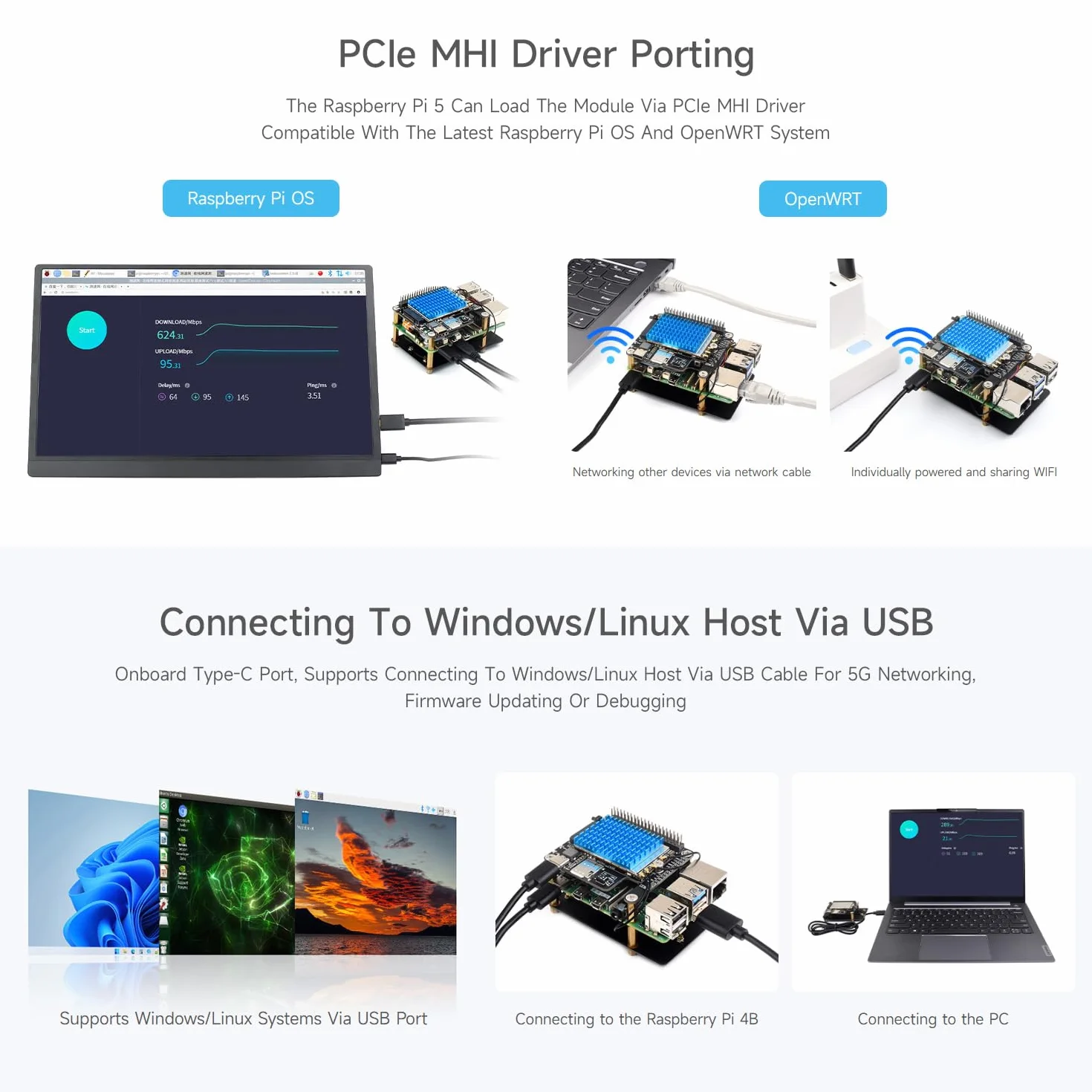

- PCIe MHI Driver Porting: The Pi5 Can Load The Module Via PCIe MHI Driver. Compatible With The Latest RPi OS And OpenWRT System. Connecting To Windows/Linux Host Via USB: Onboard Type-C Port, Supports Connecting To Windows/Linux Host Via USB Cable For 5G Networking, Firmware Updating Or Debugging

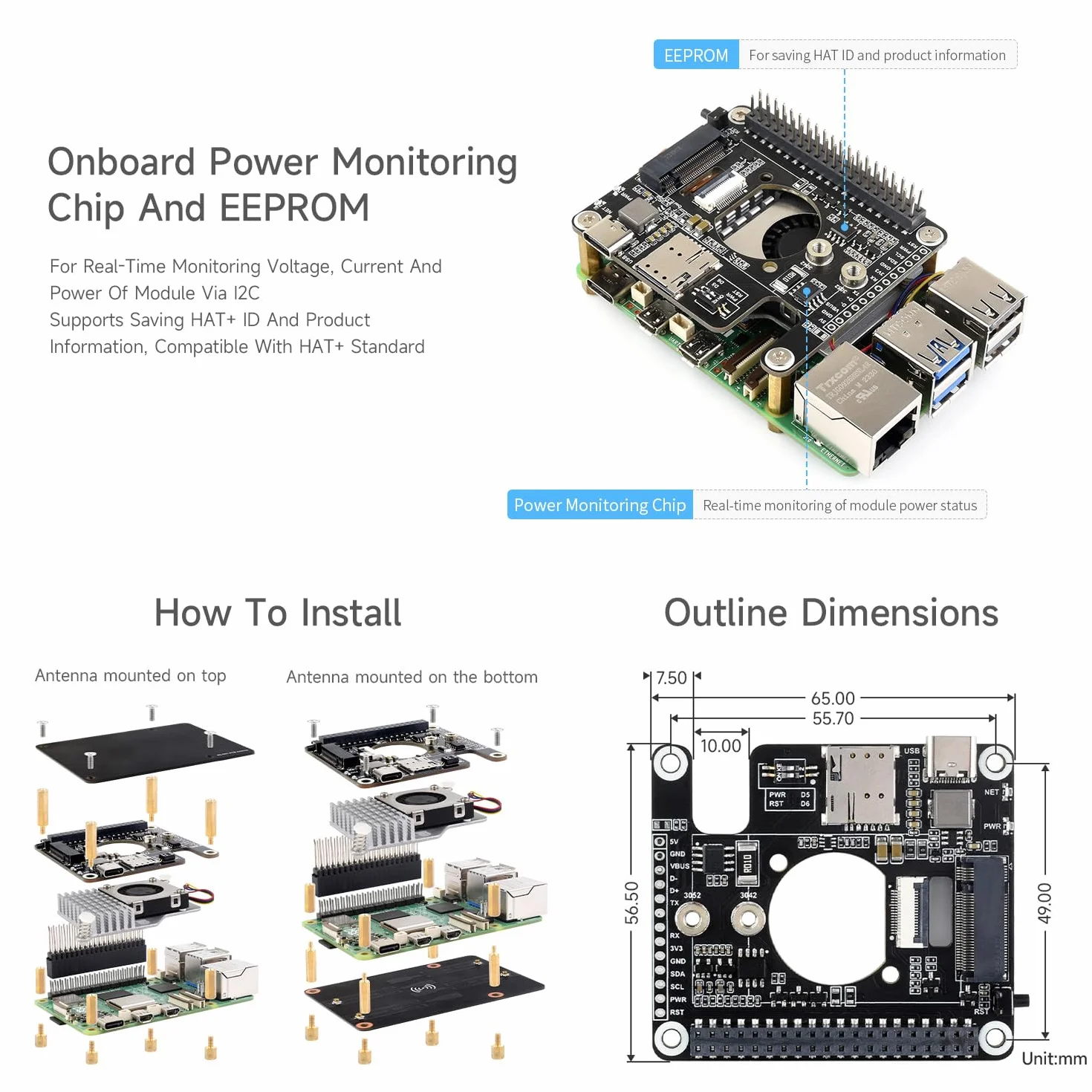

- 5G-4IN1-PCB Antenna: Supports Top And Bottom Mounting, Easy To Install, Good Communication Effect. Onboard Power Monitoring Chip And EEPROM: For Real-Time Monitoring Voltage, Current And Power Of Module Via I2C. Supports Saving HAT+ ID And Product Information, Compatible With HAT+ Standard
