Waveshare USB TO M.2 B KEY Driver Board Module for M.2 Interface 4G/5G Module(NOT Included), With 4x Antennas,USB 3.1 Port for Raspberry Pi/PC/Jetson Nano Motherboard to Achieve High Speed 5G Network

Marka: Waveshare
Interfejs sprzętowy: USB 3.1 Typ A
Kolor: Czarny
Zgodne urządzenia: Komputer stacjonarny
Protokół przesyłania danych: USB
Szybkość przesyłania danych: 5 Gigabity na sekundę
Zgodna rodzina systemów operacyjnych: Linux
Minimalna wymagana wersja systemu operacyjnego: Android 13.0, Mac OS 14 Sonoma, Ubuntu 24.04 Noble Numbat, Windows 11
Producent: Waveshare

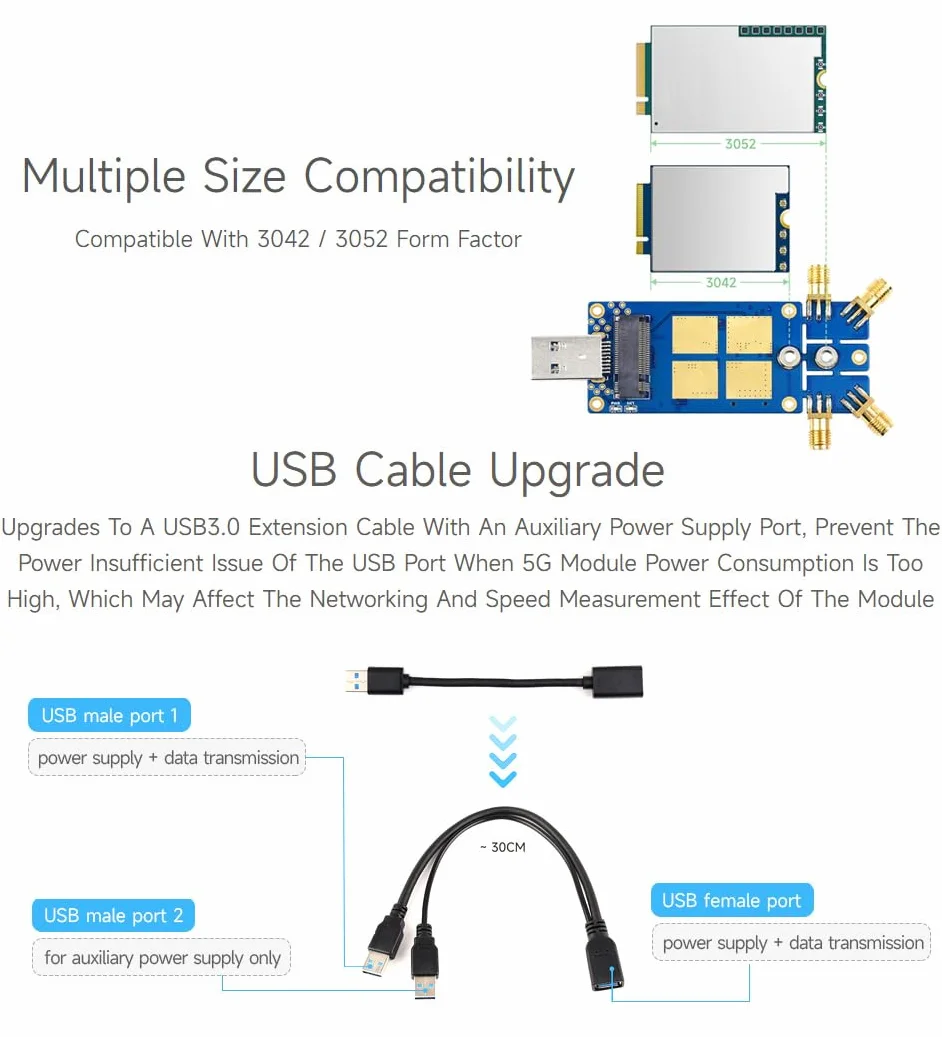

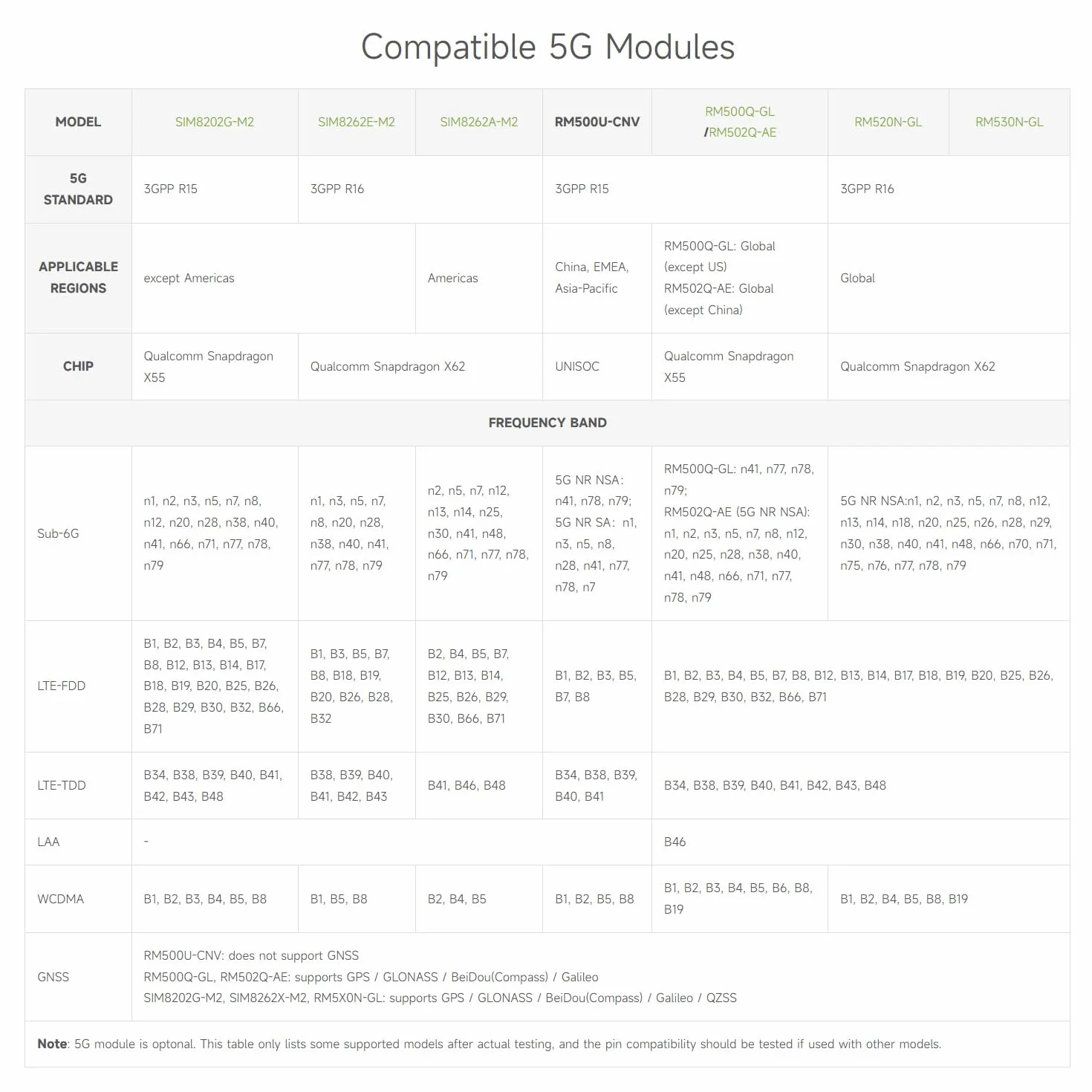

- Support 5G modules with M.2 (NGFF) Key B interface, compatible with SIMCom and Quectel 5G modules. Support 5G modules with 3042/3052 form factor, such as SIM82XX, and RM50XQ series 5G modules.

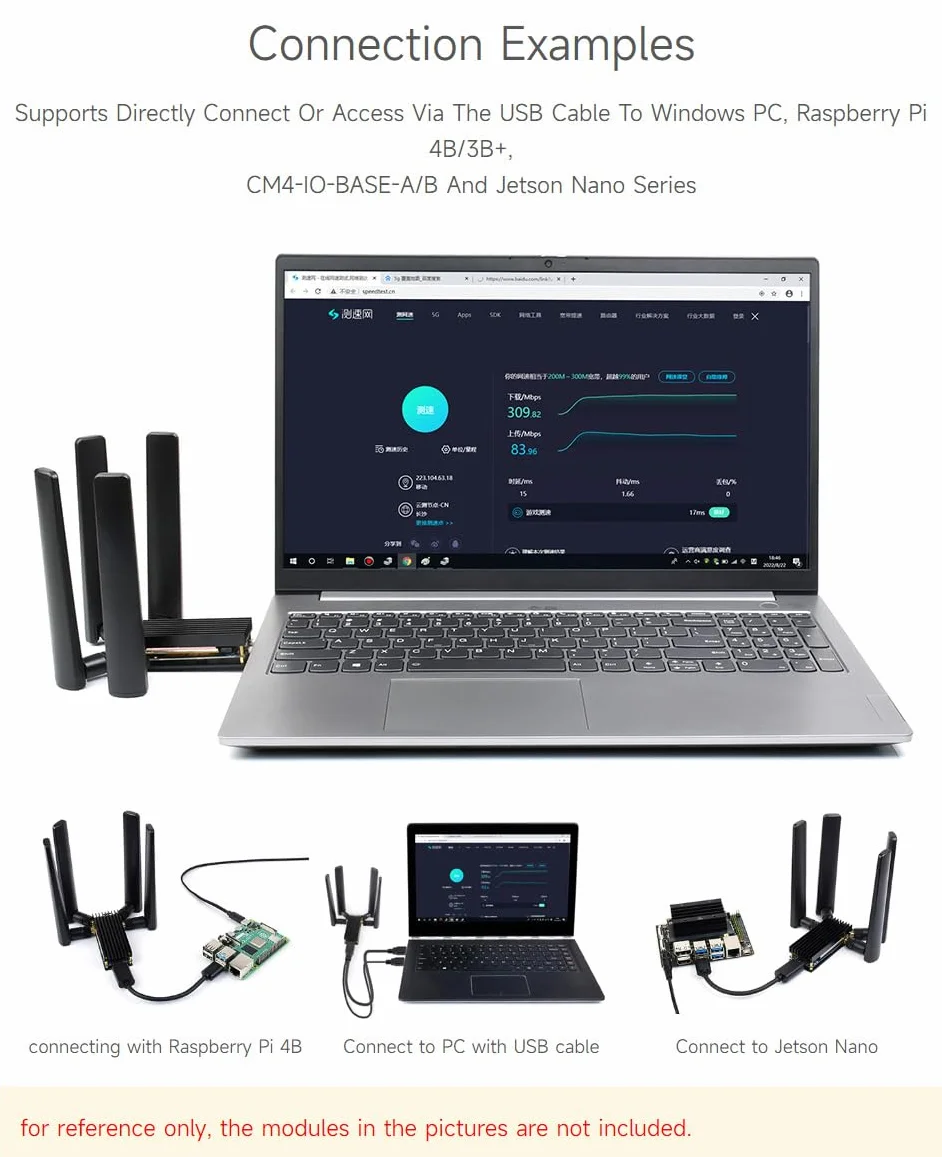

- USB 3.1 Type A port for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G network. 4x SMA antenna connectors, easy to install the antenna.

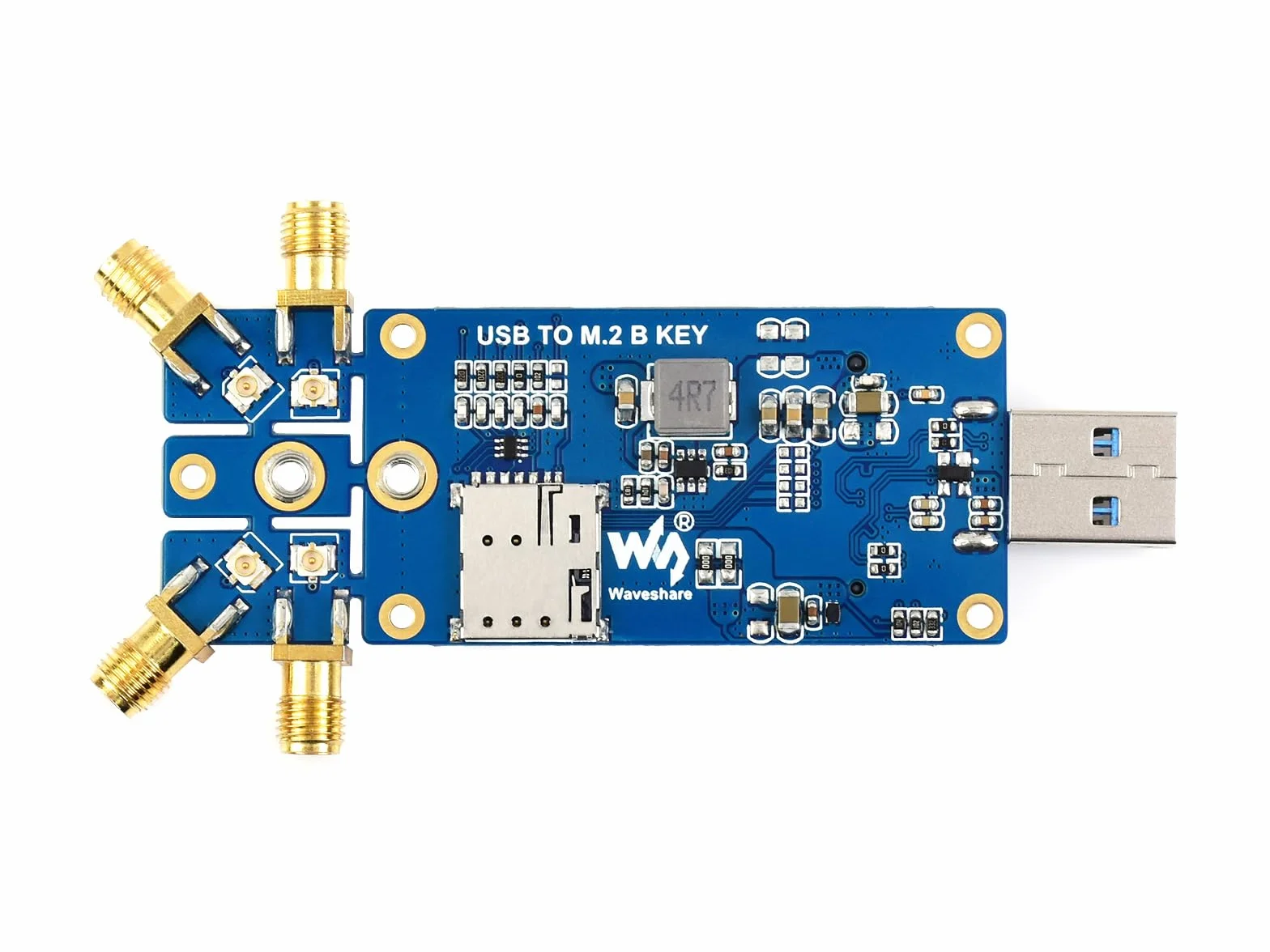

- Onboard SIM card slot for NANO SIM card. Onboard power and network indicators, with multiple reserved pads, for checking module operating status and testing other functions.

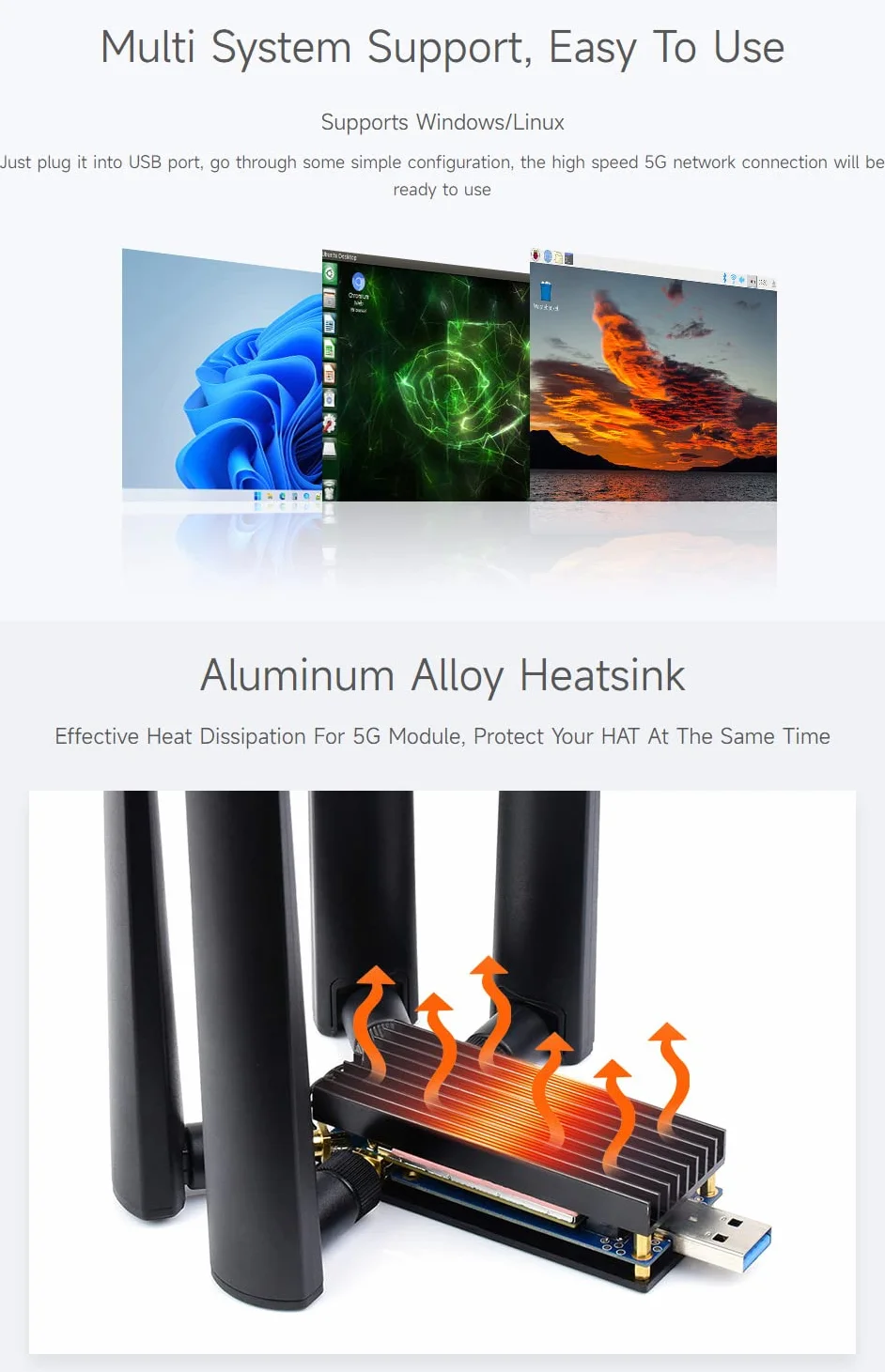

- PCB ENIG process, reserved multi slots and positioning holes for integration. Comes with customized aluminum alloy heatsink, good heat dissipation, nice-looking, protective and durable.
- Just plug it into USB port, go through some simple configuration, the high speed 5G network connection will be ready to use.
